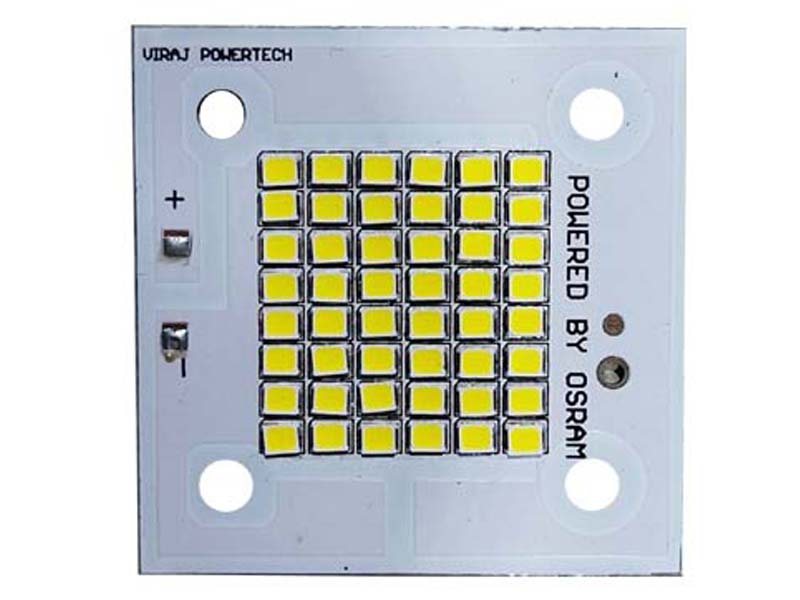

1. 50 Watt MC PCB
50W MC PCB
Model No. PCB-OLS-1475
PCB SIZE: 50X50 MM
PCB THIKNESS: 1.6MM
LED AREA: 27X27 MM
POWER: 36V 1200mA
WATTAGE: 50 WATT
PRODUCT DISCRIPTION: Driver to be used: Use Constant Current Driver – 1200 mA, Input Voltage: 26 to 36 Volt DC.High Lumen LED : this PCB contains LED chip with 120 to 140 Lumen per watts/led. Requirment: Heatsink Paste / 1080 SILICON SEALENT required for normal operation. How to Use: Clean the surface, Apply heat Sink paste on Surface where you placing and LED strip, Place the LED Strip and Connect Constant Current LED Driver.

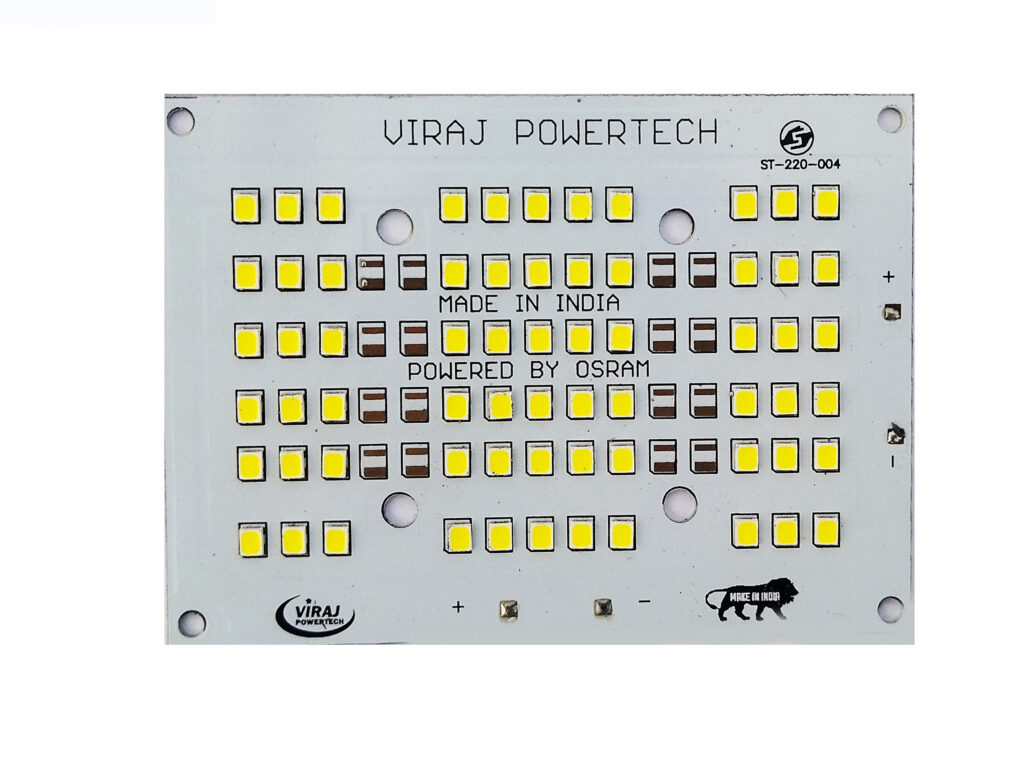

2. 50 Watt MC PCB
50W MC PCB
Model No. ST-220-004
PCB SIZE: 90X66 MM
PCB THIKNESS: 1.6MM
LED AREA: 72X45 MM
POWER: 36V 1200mA
WATTAGE: 50 WATT
PRODUCT DISCRIPTION: High Brightness: 1W 2835 LEDs, 6V, 150mA, with 50 LEDs producing a robust 50 WATT Led Light Board Output. Required Accessories to start Led Board: Requires a 50W 1500mA LED Driver(not included). Wide Range Application: Led driver Replacement with Led Plate, pcb for led light repairing, Led Street Light Plate. Less Heat Dissipation: Requires Heatsink Paste or 1080 Silicone Sealant(not included). Included Components : 50W MCPCB Led Plate(Led Pcb).

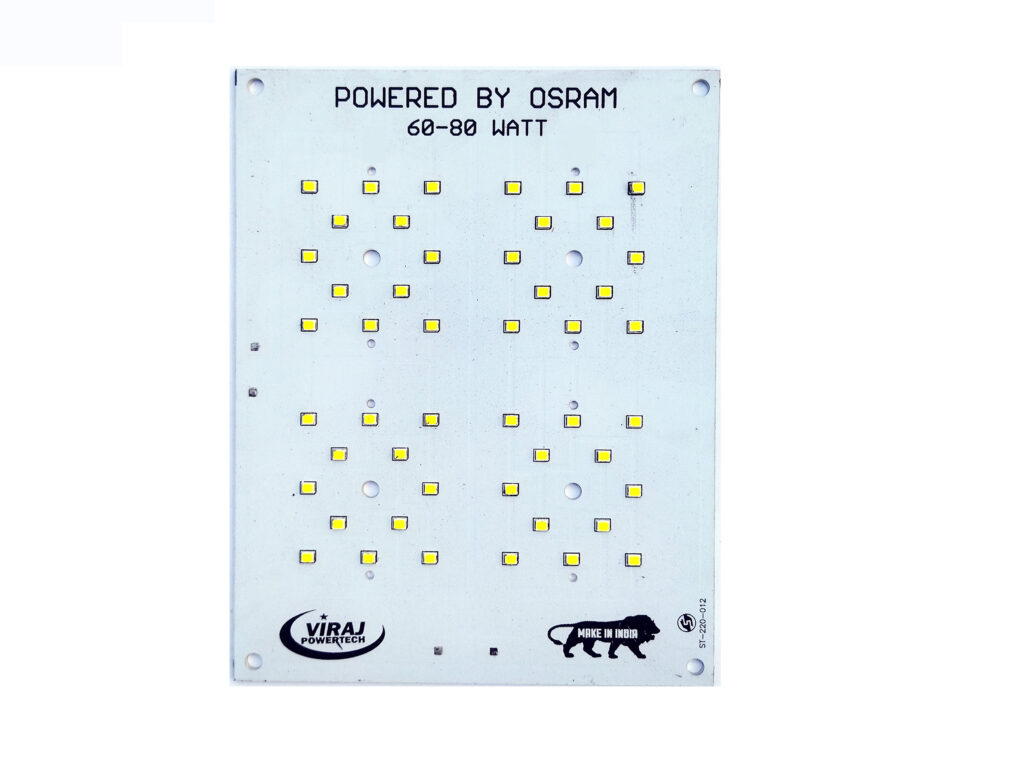

3. 50 Watt MC PCB
50W MC PCB
Model No. ST-220-012
PCB SIZE: 160X125 MM
PCB THIKNESS: 1.6MM
LED AREA: 100X90 MM
POWER: 36V 1200mA
WATTAGE: 50 WATT
PRODUCT DISCRIPTION: High Brightness: 1W 2835 LEDs, 6V, 120mA, with 50 LEDs producing a robust 50 WATT Led Light Board Output. Required Accessories to start Led Board: Requires a 50W 1500mA LED Driver(not included). Wide Range Application: Led driver Replacement with Led Plate, pcb for led light repairing, Led Street Light Plate. Less Heat Dissipation: Requires Heatsink Paste or 1080 Silicone Sealant(not included). Included Components : 50W MCPCB Led Plate(Led Pcb).

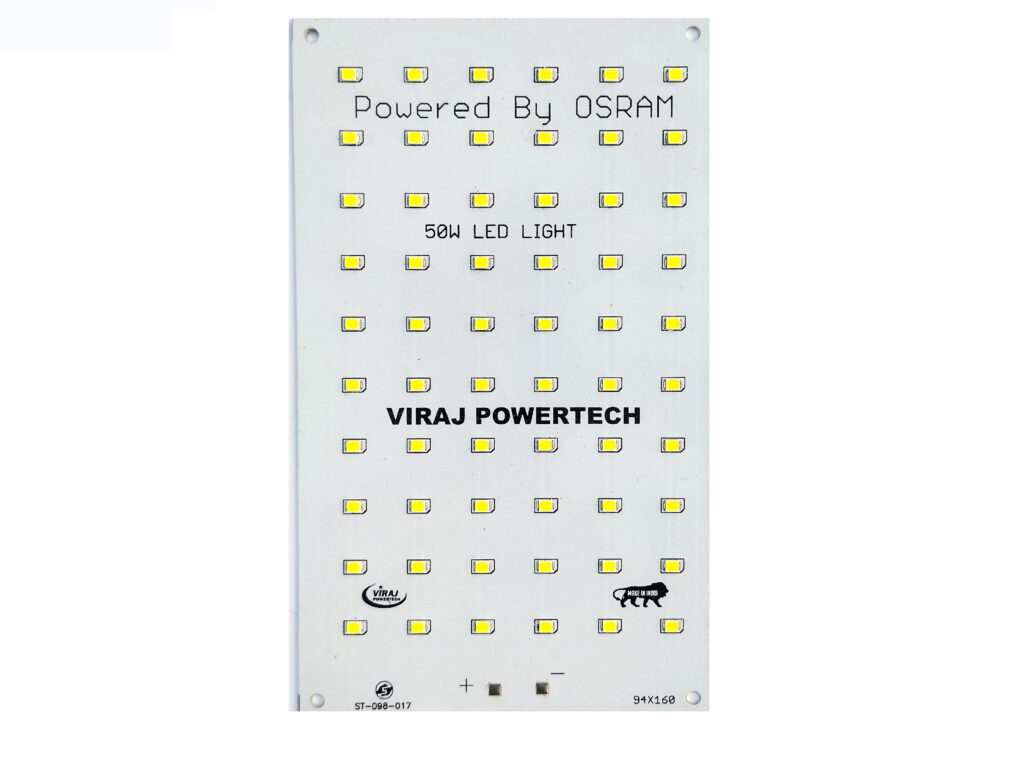

4. 50 Watt MC PCB
50W MC PCB
Model No. ST-098-017
PCB SIZE: 160X95 MM
PCB THIKNESS: 1 MM
LED AREA: 130X38 MM
POWER: 36V 1200mA
WATTAGE: 50 WATT
PRODUCT DISCRIPTION: High Brightness: 1W 2835 LEDs, 6V, 120mA, with 50 LEDs producing a robust 50 WATT Led Light Board Output. Required Accessories to start Led Board: Requires a 50W 1500mA LED Driver(not included). Wide Range Application: Led driver Replacement with Led Plate, pcb for led light repairing, Led Street Light Plate. Less Heat Dissipation: Requires Heatsink Paste or 1080 Silicone Sealant(not included). Included Components : 50W MCPCB Led Plate(Led Pcb).

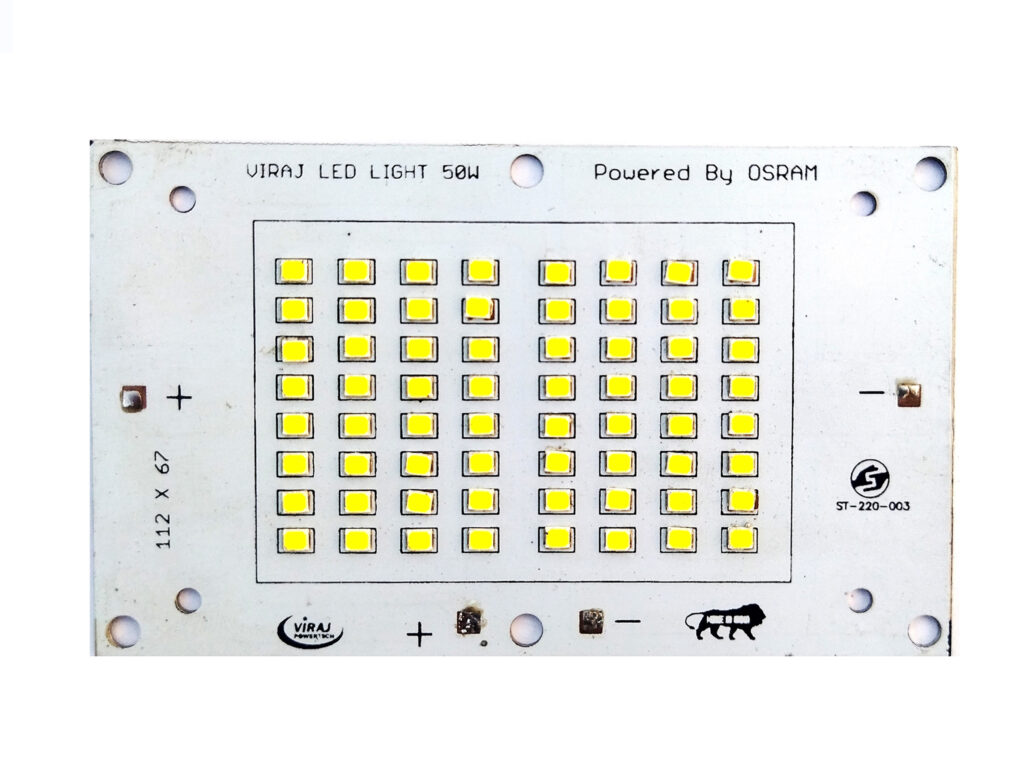

5. 50 Watt MC PCB
50W MC PCB
Model No. ST-220-003
PCB SIZE: 112X68 MM
PCB THIKNESS: 1 MM
LED AREA: 65X40 MM
POWER: 36V 1200mA
WATTAGE: 50 WATT
PRODUCT DISCRIPTION: High Brightness: 1W 2835 LEDs, 6V, 120mA, with 50 LEDs producing a robust 50 WATT Led Light Board Output. Required Accessories to start Led Board: Requires a 50W 1500mA LED Driver(not included). Wide Range Application: Led driver Replacement with Led Plate, pcb for led light repairing, Led Street Light Plate. Less Heat Dissipation: Requires Heatsink Paste or 1080 Silicone Sealant(not included). Included Components : 50W MCPCB Led Plate(Led Pcb).
6. 50 Watt MC PCB
50W MC PCB
Model No. ST-220-005
PCB SIZE: 117X42 MM
PCB THIKNESS: 1 MM
LED AREA: 92X30 MM
POWER: 30V 12500mA
WATTAGE: 50 WATT
PRODUCT DISCRIPTION: High Brightness: 1W 2835 LEDs, 6V, 120mA, with 50 LEDs producing a robust 50 WATT Led Light Board Output. Required Accessories to start Led Board: Requires a 50W 1500mA LED Driver(not included). Wide Range Application: Led driver Replacement with Led Plate, pcb for led light repairing, Led Street Light Plate. Less Heat Dissipation: Requires Heatsink Paste or 1080 Silicone Sealant(not included). Included Components : 50W MCPCB Led Plate(Led Pcb).
