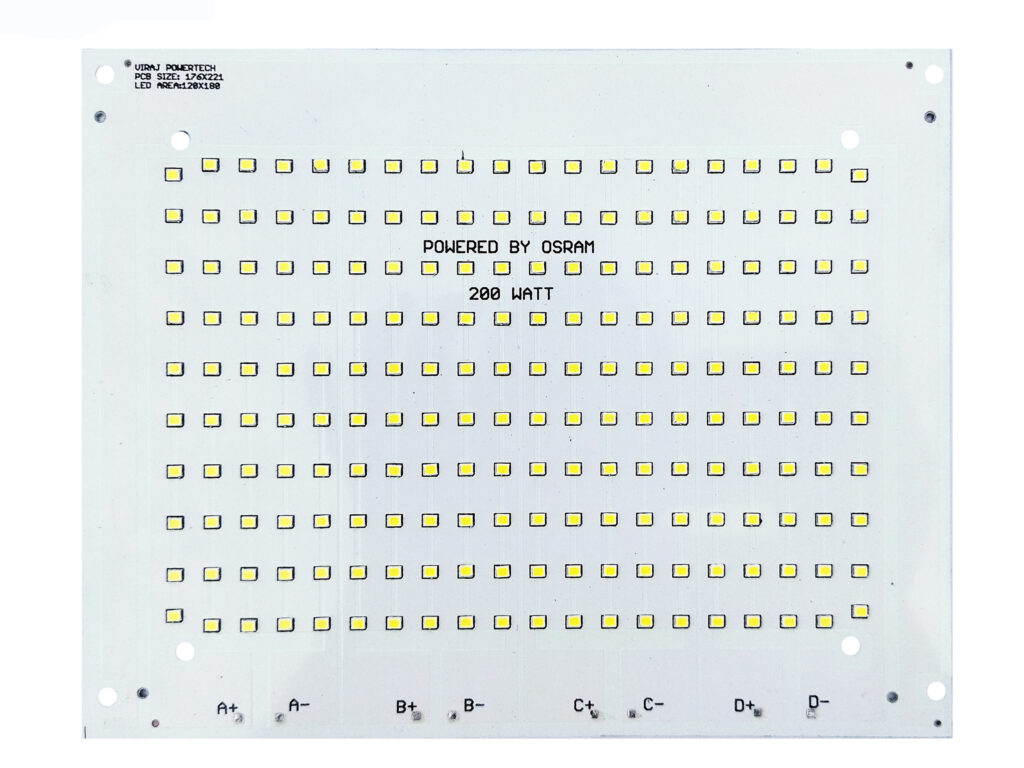

1. 200 Watt MC PCB
200W MC PCB
Model No. PCB-OLS-1384
PCB SIZE: 222X177 MM
LED AREA: 180X121 MM
PCB THIKNESS: 1.6MM
POWER: 30V 1500mA X 4
WATTAGE: 200 WATT
PRODUCT DISCRIPTION:
- LED PCB Size – 222X177MM
- Driver to be used: Use 4 No of 50 Watt Constant Current Driver – Current Input: 1500 mA, Input Voltage: 24-30 Volt DC Per 50 Watt
- High Lumen LED : This PCB contains 200 LED chip with 120 to 140 Lumen per watts/led
- Quality Build : 200 Watts LED PCB build with tick plate and with Osram led for longer life
- Colour Temprature: 6500 K almost exactly to natural daylight.
- Average life time of LED is 50000 Hrs
2. 200 Watt MC PCB
200W MC PCB
Model No. ST-220-002
PCB SIZE: 260X152 MM
LED AREA: 155X110 MM
PCB THIKNESS: 1.6MM
POWER: 30V 1500mA X 4
WATTAGE: 200 WATT
PRODUCT DISCRIPTION:
- LED PCB Size – 260X152MM
- Driver to be used: Use 4 No of 50 Watt Constant Current Driver – Current Input: 1500 mA, Input Voltage: 24-30 Volt DC Per 50 Watt
- High Lumen LED : This PCB contains 200 LED chip with 120 to 140 Lumen per watts/led
- Quality Build : 200 Watts LED PCB build with tick plate and with Osram led for longer life
- Colour Temprature: 6500 K almost exactly to natural daylight.
- Average life time of LED is 50000 Hrs

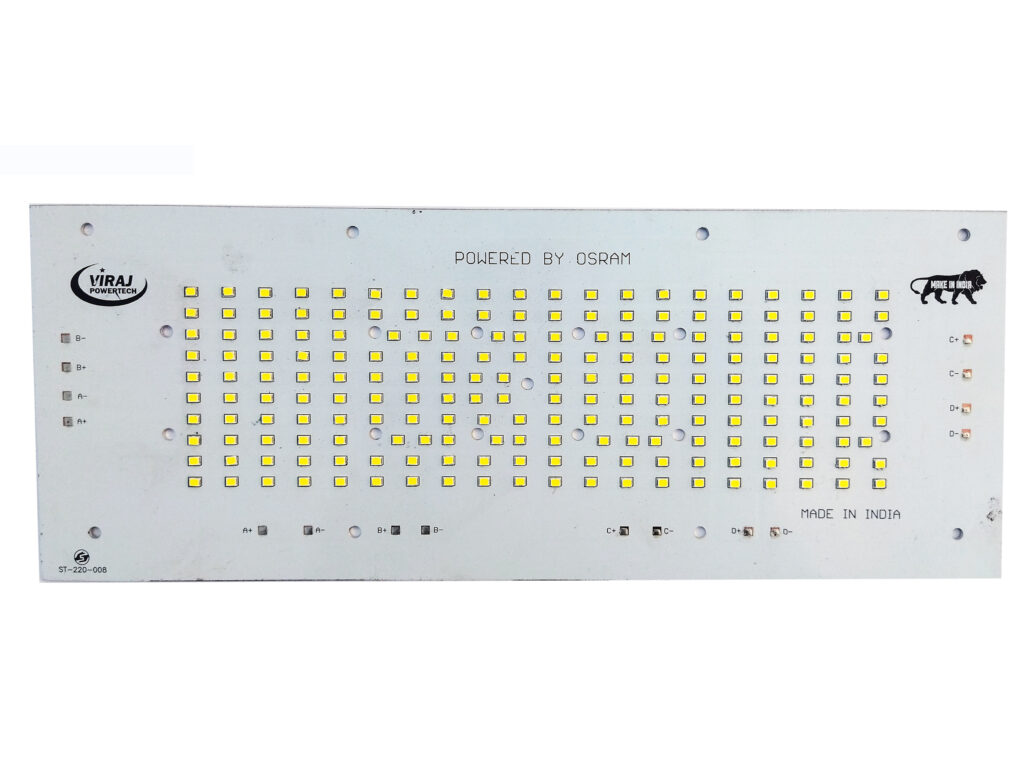

3. 200 Watt MC PCB
200W MC PCB
Model No. ST-220-008
PCB SIZE: 325X125 MM
LED AREA: 233X67 MM
PCB THIKNESS: 1.6MM
POWER: 30V 1500mA X 4
WATTAGE: 200 WATT
PRODUCT DISCRIPTION:
- LED PCB Size – 325X125MM
- Driver to be used: Use 4 No of 50 Watt Constant Current Driver – Current Input: 1500 mA, Input Voltage: 24-30 Volt DC Per 50 Watt
- High Lumen LED : This PCB contains 200 LED chip with 120 to 140 Lumen per watts/led
- Quality Build : 200 Watts LED PCB build with tick plate and with Osram led for longer life
- Colour Temprature: 6500 K almost exactly to natural daylight.
- Average life time of LED is 50000 Hrs
