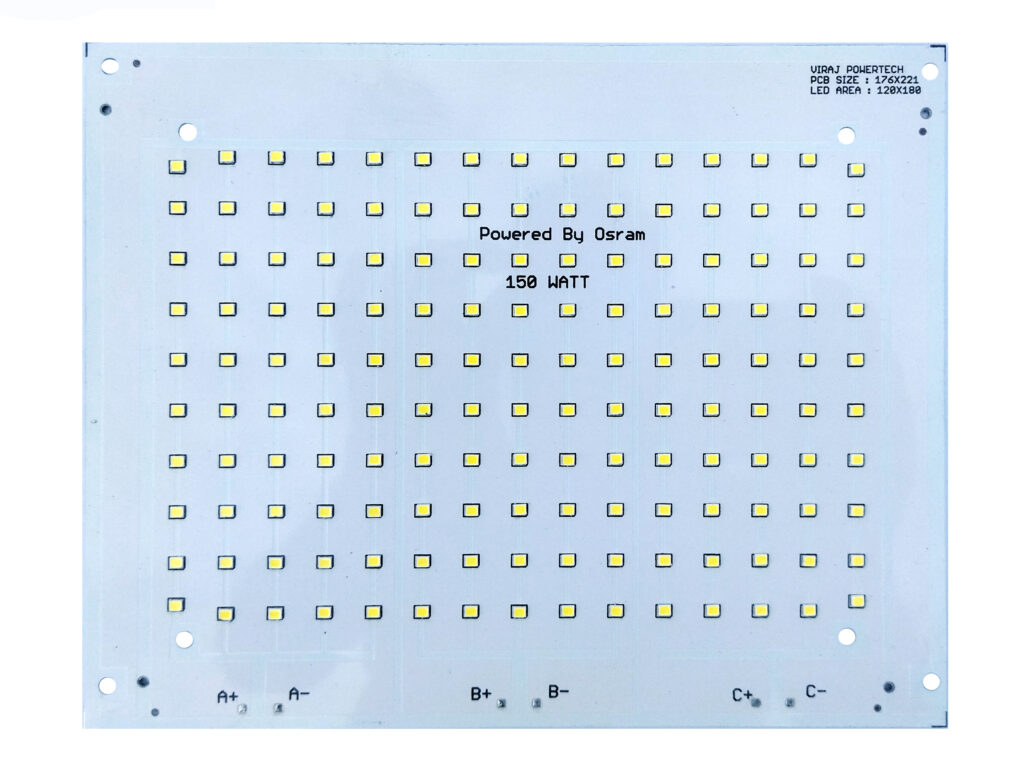

1. 150 Watt MC PCB

150W MC PCB

Model No. PCB-OLS-1383

PCB SIZE: 222X176 MM

PCB THIKNESS: 1.6MM

LED AREA: 180X121 MM

POWER: 30V 1500mA X 3

WATTAGE: 150 WATT

PRODUCT DISCRIPTION:

  • LED PCB Size – 222 mm x 176 mm
  • Driver to be used: Use 3 No of 50 Watt Constant Current Driver – Current Input: 1500 mA, Input Voltage: 26 to 36 Volt DC Per 50 Watt
  • High Lumen LED : This PCB contains 150 LED chip with 120 to 140 Lumen per watts/led
  • Quality Build : 150 Watts LED PCB build with tick plate and with Osram led for longer life
  • Colour Temprature: 6500 K almost exactly to natural daylight.
  • Average life time of LED is 50000 Hrs


BACK TO MC PCB MENU

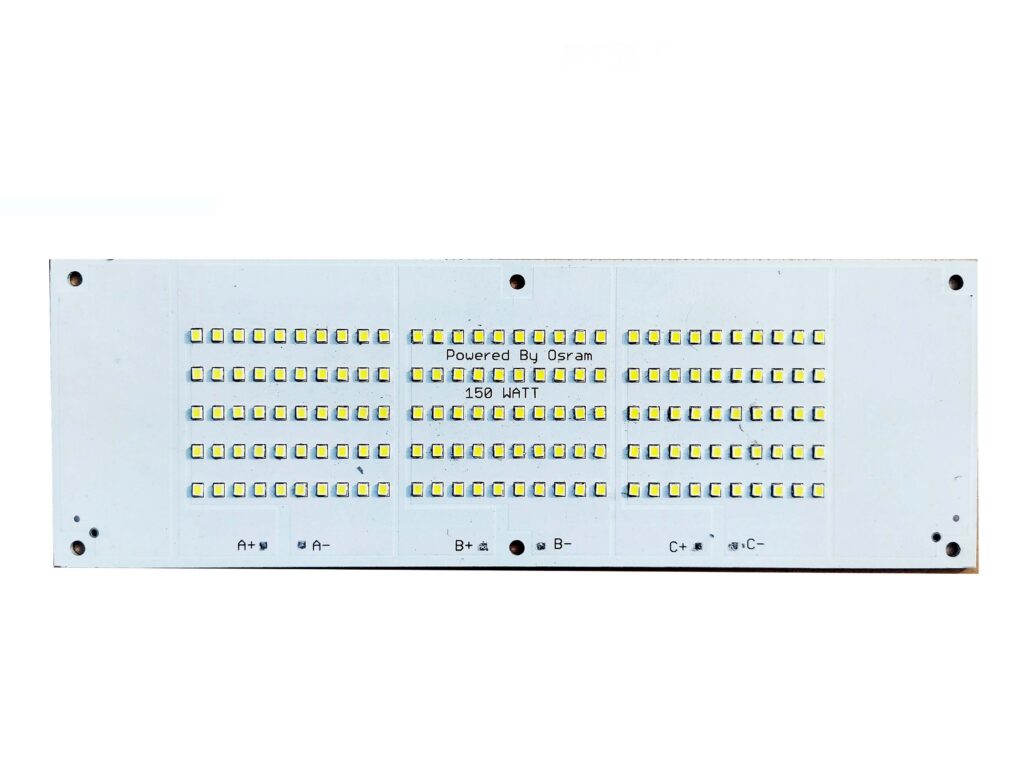

2. 150 Watt MC PCB

150W MC PCB

Model No. PCB-OLS-1478

PCB SIZE: 240X90 MM

PCB THIKNESS: 1.6MM

LED AREA: 185X50 MM

POWER: 30V 1500mA X 3

WATTAGE: 150 WATT

PRODUCT DISCRIPTION:

  • LED PCB Size – 240 mm x 90mm
  • Driver to be used: Use 3 No of 50 Watt Constant Current Driver – Current Input: 1500 mA, Input Voltage: 26 to 36 Volt DC Per 50 Watt
  • High Lumen LED : This PCB contains 150 LED chip with 120 to 140 Lumen per watts/led
  • Quality Build : 150 Watts LED PCB build with tick plate and with Osram led for longer life
  • Colour Temprature: 6500 K almost exactly to natural daylight.
  • Average life time of LED is 50000 Hrs


BACK TO MC PCB MENU

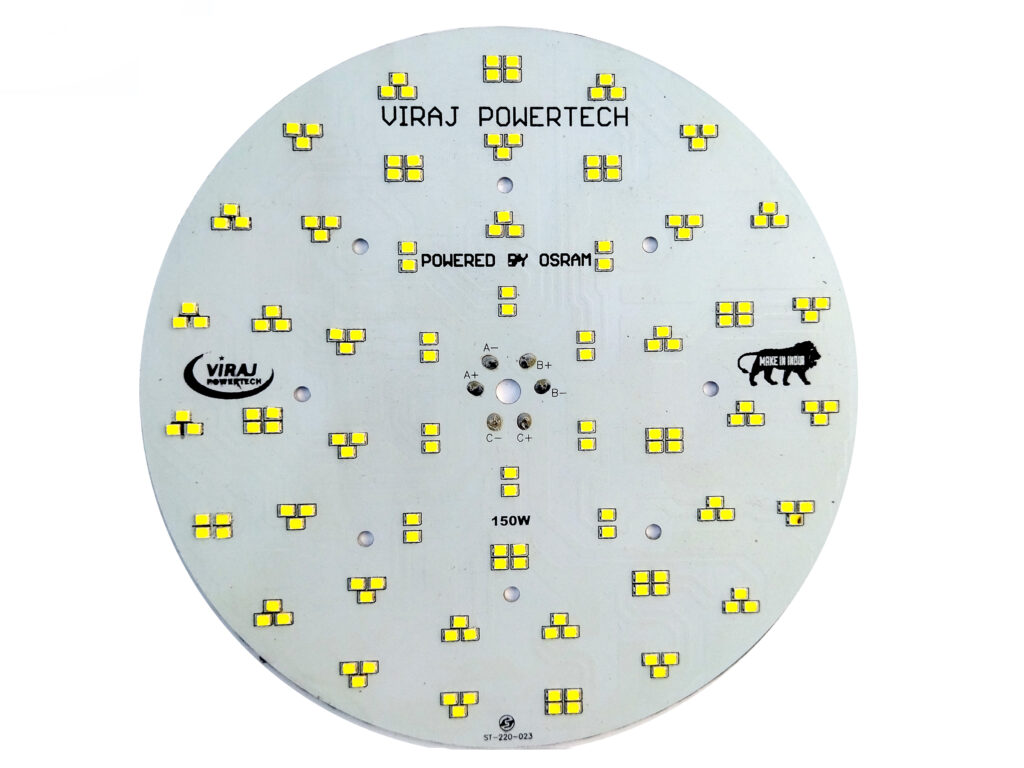

3. 150 Watt MC PCB

150W MC PCB

Model No. ST-220-023

PCB SIZE: Ø190 MM

PCB THIKNESS: 1.6MM

POWER: 30V 1500mA X 3

WATTAGE: 150 WATT

PRODUCT DISCRIPTION:

  • LED PCB Size – Ø190MM
  • Driver to be used: Use 3 No of 50 Watt Constant Current Driver – Current Input: 1500 mA, Input Voltage: 26 to 36 Volt DC Per 50 Watt
  • High Lumen LED : This PCB contains 150 LED chip with 120 to 140 Lumen per watts/led
  • Quality Build : 150 Watts LED PCB build with tick plate and with Osram led for longer life
  • Colour Temprature: 6500 K almost exactly to natural daylight.
  • Average life time of LED is 50000 Hrs


BACK TO MC PCB MENU

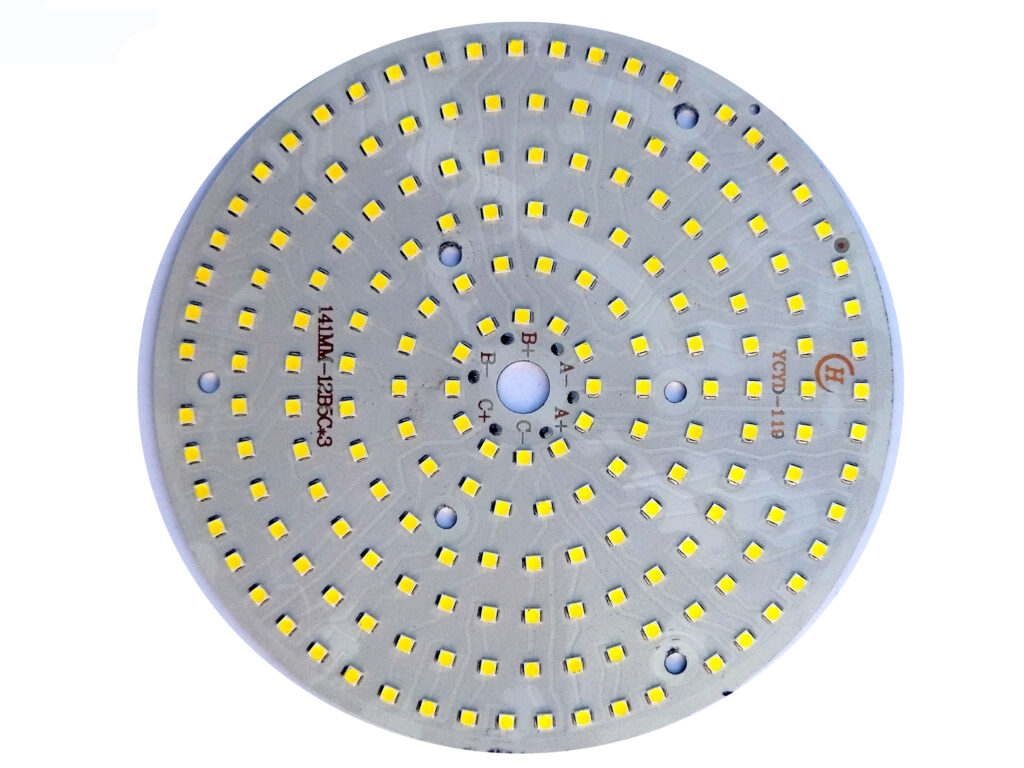

4. 150 Watt MC PCB

150W MC PCB

Model No. VP-198-023

PCB SIZE: Ø142 MM

PCB THIKNESS: 1.6MM

POWER: 36V 1200mA X 3

WATTAGE: 150 WATT

PRODUCT DISCRIPTION:

  • LED PCB Size – Ø142MM
  • Driver to be used: Use 3 No of 50 Watt Constant Current Driver – Current Input: 1200 mA, Input Voltage: 36 Volt DC Per 50 Watt
  • High Lumen LED : This PCB contains 180 LED chip with 120 to 140 Lumen per watts/led
  • Quality Build : 150 Watts LED PCB build with tick plate and with Osram led for longer life
  • Colour Temprature: 6500 K almost exactly to natural daylight.
  • Average life time of LED is 50000 Hrs


BACK TO MC PCB MENU
